Drag 4 Kit electronic cigarette Voopoo for lung vaping.
Device composed of dual battery box mod 18650 (batteries not included), USB-C 3A port, lock button, adjustable power up to 177W and Smart, RBA, TC and ECO modes. Uforce-L Tank atomizer with 4ml / 5.5ml capacity, top refill, anti-condensation system and 810 drip tip.
Device compatible with Voopoo PnP Coil coils, two of which are included in the package: TW20 0.2? (40-55W) and TW15 0.15? (55-70W).
Available with resin panel (blue, orange, and green models) or wood panel (walnut and rosewood models).
- → Shipping from 9.90 € - info
- → Do you need help? Go to the help center
- → Phone support: +39 392 122 122 8 (Mon-Fri 9:00-12:45 / 15:00-18:00 CEST)
- → Information on warranty and assistance
Voopoo Drag 4 Kit electronic cigarette dual 18650 battery
The Drag 4 by Voopoo is a fourth-generation electronic cigarette for lung vaping that offers great power, multiple usage modes, and a stunning design: in fact, there are three models available with integrated wood panel and three with resin panel.
The mod's body is made of zinc alloy and features a leather insert on the front, which provides a secure and pleasant grip. It is powered by dual 18650 batteries (to be purchased separately) that are inserted under the magnetic door and can be quickly recharged through the 3A USB-C port (using adapters marked with 5V = 3A or a USB 3.0 interface).
The display allows you to choose from 5 available color themes, navigate through the options easily, and select from the 4 available vape modes:
- Smart: coil recognition and automatic wattage adjustment
- RBA: manual power adjustment
- TC: temperature control vaping (Ni200, Ti, SS316, SS430)
- ECO: low power consumption mode, ideal when the charge is below 20%
The GENE.TT 2.0 chipset provides excellent performance and is equipped with all the necessary protections for safe vaping (10s cutoff, low battery level, overcharge, short circuit, overheating, battery reverse). The mod's firmware can be updated by connecting it to a PC with the provided USB-C cable and downloading the firmware from the official Voopoo website. The buttons can be locked using the dedicated button located under the screen, and the top cap is a classic universal 510 with a diameter of 26mm.
The Uforce-L Tank atomizer included in the kit has a 4ml capacity, which can be extended to 5.5ml with the included bubble glass; it is conveniently refilled from the top and features an interchangeable 810 drip tip. The airflow can be adjusted using the ring located on the top of the atomizer, which opens and closes three slots on the sides, allowing for a well-contrasted RDL draw or a very airy DL draw.
The atomizer can be fully disassembled for easy cleaning, including the metal base that houses the 510 connector.
The Drag 4 is compatible with Voopoo PnP Coils, of which two new generation coils are included in the package:
- PnP-TW15 0.15? (55-70W): airy draw, maximum vapor production, and sweet flavor
- PnP-TW20 0.2? (40-55W): airy draw, huge dense vapor production, and rich taste
Other PnP Coils with different resistance values can be purchased separately (not included) to further customize your vaping experience.
The new PnP coils feature the Dual In One Tech 2.0 technology, a dual mesh design that captures more heat, increases atomization efficiency, and delivers a richer flavor for up to 40ml of vaped e-liquid, approximately 25% more compared to previous models.
Technological, user-friendly, and with a modern and captivating design: a model worthy of the Voopoo stable that takes your vaping to the next level.

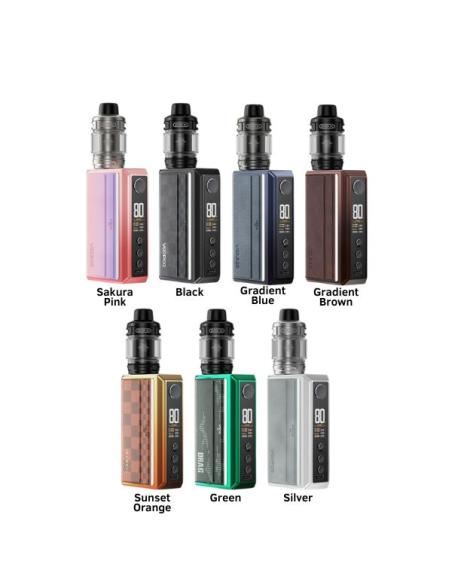

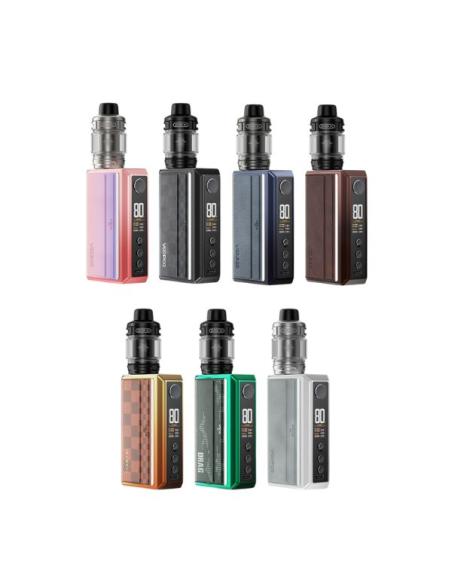

Available in different colors.
Instructions for use
- Open the box panel and insert two fully charged 18650 batteries
- Insert one of the supplied coils inside the Tank, after wetting the cotton with the desired liquid
- Unscrew the atomizer's top cap and refill the liquid from the top until the tank is full
- Close the atomizer, place it in its seat on the battery body, and wait at least 5 minutes before vaping, so that the cotton of the coil head is properly saturated
- Turn on the device with 5 clicks on the Fire button
- Vape by clicking the same button
- To replace the coil: unscrew the bottom part of the atomizer and replace the worn-out coil head with a new one
- To adjust airflow and power: rotate the ring on the top of the tank to find the right compromise according to your preferences
Check out the instruction manual Voopoo Drag here!
Accessories and Spare Parts for Drag 4 Kit
Technical specifications
- Construction materials: zinc alloy, eco-leather, resin or wood, stainless steel, pyrex glass, and POM
- Atomizer dimensions: 25.5 x 25.5 x 58mm
- Box mod dimensions: 52.4 x 25.4 x 89mm
- Kit dimensions: 52.4 x 25.4 x 147.3mm
- Capacity: 4ml - 5.5ml
- Liquid refill: top-fill
- Maximum power: 177W
- Battery type: dual 18650 batteries (batteries not included)
- Connectors: 510
- Drip tip: 810
- Inhalation type: lung
- Auto draw: no
- Included resistances: PnP-TW20 0.2? and PnP-TW15 0.15?
- Compatible resistances: Voopoo PnP Coil
- Supported resistance range: 0.05 - 3.0 Ohm
- Charging port: USB-C 3A
- Display: color
Package contents
- 1 x Drag 4 Box Mod 177W
- 1 x Uforce-L Tank 4ml Atomizer
- 1 x PnP-TW15 Coil 0.15?
- 1 x PnP-TW20 Coil 0.2?
- 1 x 5.5ml Replacement Glass
- 1 x Replacement O-Ring Packet
- 1 x USB Type-C Cable
- 1 x User Manual
Buy Voopoo electronic cigarettes on Svapoebasta
In the vape shop, you have a wide selection of Voopoo electronic cigarettes: choose the one that suits you!
- Liquid Capacity
- 5.5 ml
- Category
- Electronic Cigarettes
- Drip Tip
- 810
- Brand
- Voopoo
- Typology
- Complete Kit
Starter Kit - Battery Format
- 18650 is the model number of a type of lithium-ion rechargeable battery.
- Difficulty
- Middle
- Maximum Power
- from 151W upwards
- Type of Shot
- Lung (DL)
Manual - Diameter
- 26 mm
- Air regulation
- Adjustable shot
- Tank filling
- From above
- Battery
- Dual battery (not included)
- Battery recharge
- External charger (not included)
USB-C cable - Visualizza
- Yes.
- Power adjustment
- Automatica
Manual - Type of Resistors
- Interchangeable head coil
